Hwashi Automatic Steel Wire Ring Making and Welding Machine / Butt Welding Machine

Name: Hwashi Automatic Steel Wire Ring Making and Welding Machine Butt Welding Machine
Brand: Hwashi
Price: 5000 USD

Wholesale Hwashi Automatic Steel Wire Ring Making and Welding Machine / Butt Welding Machine from china suppliers

Brand Name : Hwashi

Model Number : WL-B-50K

Certification : CE,CCC

Place of Origin : China

MOQ : 1

Price : 5000usd

Supply Ability : 50 sets per month

Packaging Details : Wooden package

Usage : Butt Welding

Power : 75KVA

Dimensions : as customer request

Condition : New

Color : blue,According to the customer's request.

Current : Alternating Current

Input voltage : 220V,380V,Customized

Frequency : 50-60HZ

Voltage : 380V

Welding area : Products Size

Warranty : 1 Year

Contact Now

Product Description

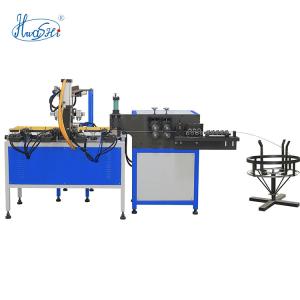

Hwashi Automatic Steel Wire Ring Making and Welding Machine / Butt Welding Machine

Automatic Wire Ring Making and Butt Welding Machine

The equipment specializes in automatic production of iron ring. When the iron wire enters the hole position set by the equipment, start the equipment automatically by setting the perimeter value, quantity and line speed according to the specification.

Welding sample effect

Introduction to butt welding

Butt welding machine is also called current welding machine or resistance welding machine. Utilize the contact resistance of the two work pieces on the connecting position and low voltage and large current instantaneously pass through them to make the contact surface of two contacting metal heating instantaneously to melt and fuse. According to the different welding method, butt welding machine can be divided to flash butt welding machine, copper and aluminum butt welding machine, general butt welding machine.Butt welding of wire rod of different size or shape. Also suitable for butt welding of unfolded panel material whose width is within 300mm.

Intelligent Welding Control System

Be able to choose AC or MF DC power source. You can save different welding models on the controller for different welding material and wire thickness.

Welding Electrode

Be able to make several grooves on the electrodes so one electrode set could weld several types of different wire diameter

Customized Special Welding Moulds

Processing and making suitable molds according to different product butt welding requirements, making work easier.

Automatic Loading and Unloading Arm

Be able to install the automatic loading and unloading arm to the butt welding machine, so it can be matched with 2D/3D bending machine to achieve full automatic forming and welding process.

Model	Small Ring Making	Vertical Type	6mm Wire Special Use	10mm Wire Special Use
Wire Diameter Range	1.2-3mm	1.6-5mm	5-6.5mm	6.5-10mm
Ring Diameter Range	18-80mm	70-450mm	250-450mm	350-450mm
Air Pressure Range	4-6Mpa
Power Type	AC Type
Motor Power	2.3KW	2.3KW	3.0KW	5.0KW
Dimension	1000x800x1130mm	1320x1000x1300mm	1450x1100x1300mm	1450x1300x1400mm
Weight	1000kg	1200kg	1400kg	1600kg
Main Power Voltage	Three-phase 380V 50Hz
Welding Method	Resistance Welding
Suitable Wire Material	Cold Drawn Wire, Galvanized steel wire, iron wire, etc.

Application and samples

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Application

Suitable for end face welding of carbon steel, copper, aluminum, stainless steel, alloy steel and other materials such as wire, bar and pipe.

Production Line Machines

Other Machines Related to Wire Shelf Production Line Composition

We can design the complete full automatic or semi automatic production line machine for refrigerator wire shelf. You may provide us the detailed product drawings and efficiency requirement. Then our engineering team will prepare the customized proposal for you.

Wire Flattening and Cutting Machine

This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length.

Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip.

High Speed Wire Straightenign and Cutting Machine

This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost.

Wire Frame Bending Machine

This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate.

Wire Frame Butt Welding Machine

The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively.

Wire Frame Double T-Butt Machine

This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application.

Wire Edge Trimming Machine

After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth.

2D Wire Handle Bending Machine

This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould.

3D Wire Bending Machine

This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould.
